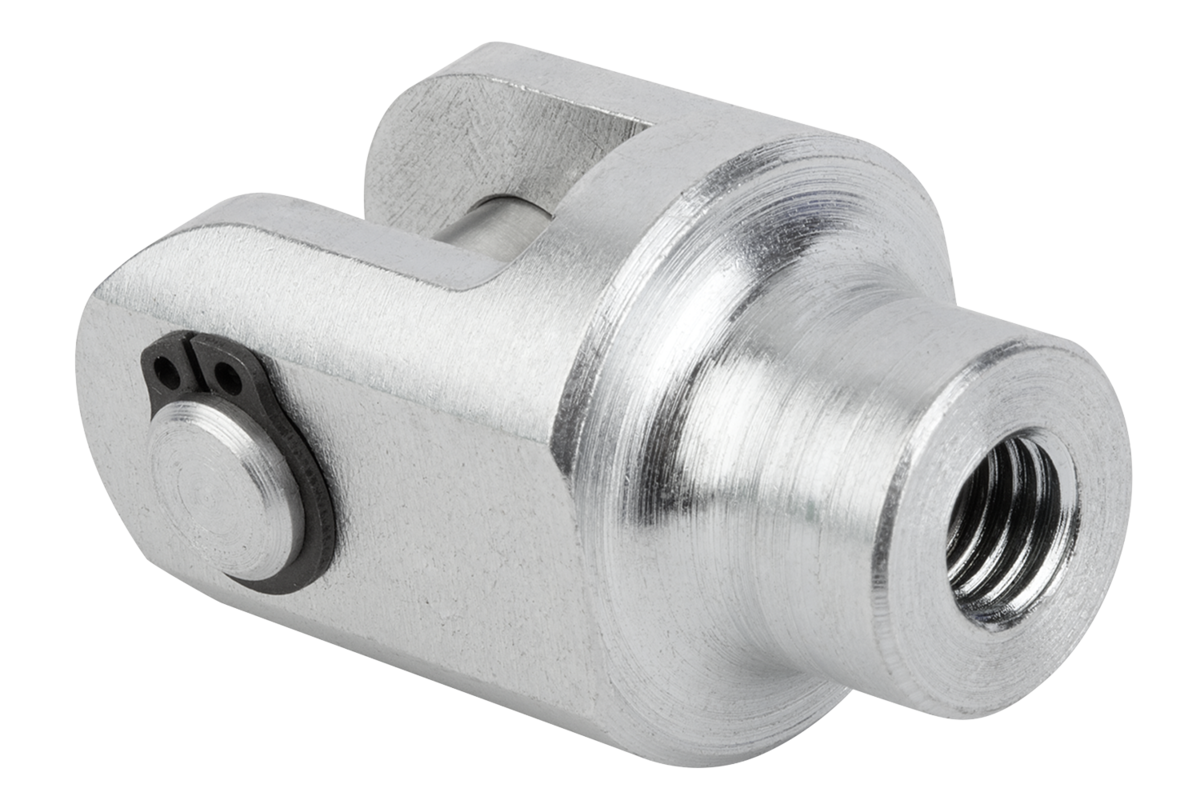

Clevis Joint
for rod ends
steel
- Enables transmission and redirection of forces
- Application sectors: machine and vehicle construction, material handling
- Suitable for various pivot heads
Sales unit
71,16 €
plus sales tax
Added to your shopping cart
Item
Clevis Joint
Version 1
for rod ends
Main
material
steel
D=outside diameter
38
B
45
C
25
D1
20
D2
M20
D3
50
F
static
kN
43
L
90,5
L1
51,9
L2
68
L3
29,5
R1
22,5
RoHS
true
W°
9
Description
Material
Clevis and pin, steel 1.7225
Version
Electro zinc-plated.
Note
These clevises were developed as accessories for rod ends. The clevis opening size C was chosen to accept rod end joints.
Suitable for rod ends 27625, 27626, 27627 and 27628.
Suitable for rod ends 27625, 27626, 27627 and 27628.
