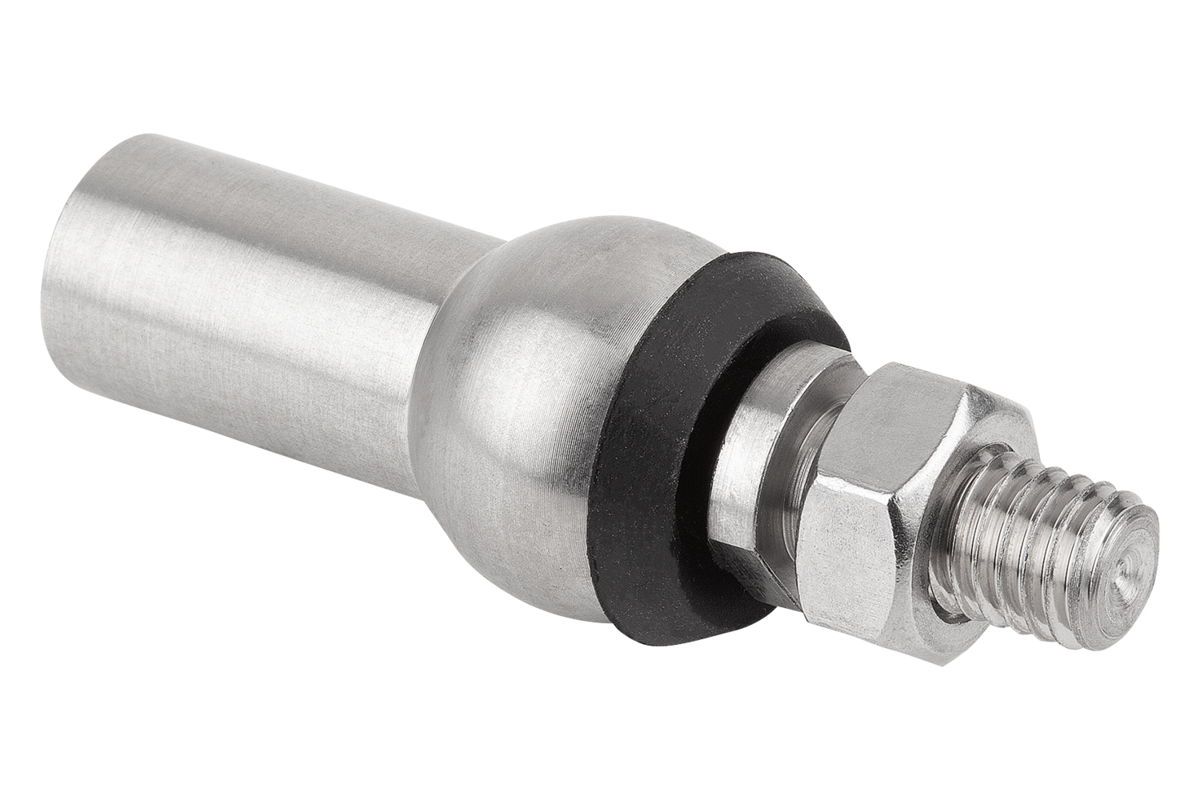

Axial Joint
RH thread
stainless steel
bright
- For transmitting movement processes
- Application sectors: machine and vehicle construction, material handling
- Temperature range: -30 °C to +110 °C
- Stainless steel version: protected against dust and dirt
Sales unit
€15.78
plus sales tax
Added to your shopping cart
Item
Axial Joint
Thread type
internal and external thread
Version 1
RH thread
DIN
similar to DIN 71802
Main
material
stainless steel
Component
material
PTFE
Surface finish
body
bright
Steel code
1.4305
D2=Thread
M5
A
22
D1
8
E
10,2
Extraction
force F
N
30
L3
9
LA
19,2
RoHS
true
Description
Material
Steel or 1.4305 stainless steel.
Stainless steel versions have Neoprene seals.
Version
Trivalent passivated.
Stainless steel version bright.
Stainless steel version bright.
Note
Protected against dust, dirt, water spray and vapour.
Applicable temperature range from -30 °C to +110 °C.
Applicable temperature range from -30 °C to +110 °C.
On request
Axial joints with greater extraction force and left-hand thread available.
