{"product":{"productId":"agid.20135","price":230.14,"name":"Fine adjustment for workpiece stabiliser"},"currency":"EUR"}
Material
Steel.
Version
Adapter piece black oxidised.
Half shells nitrided.
Half shells nitrided.
Show more
Show less
Description
Product description

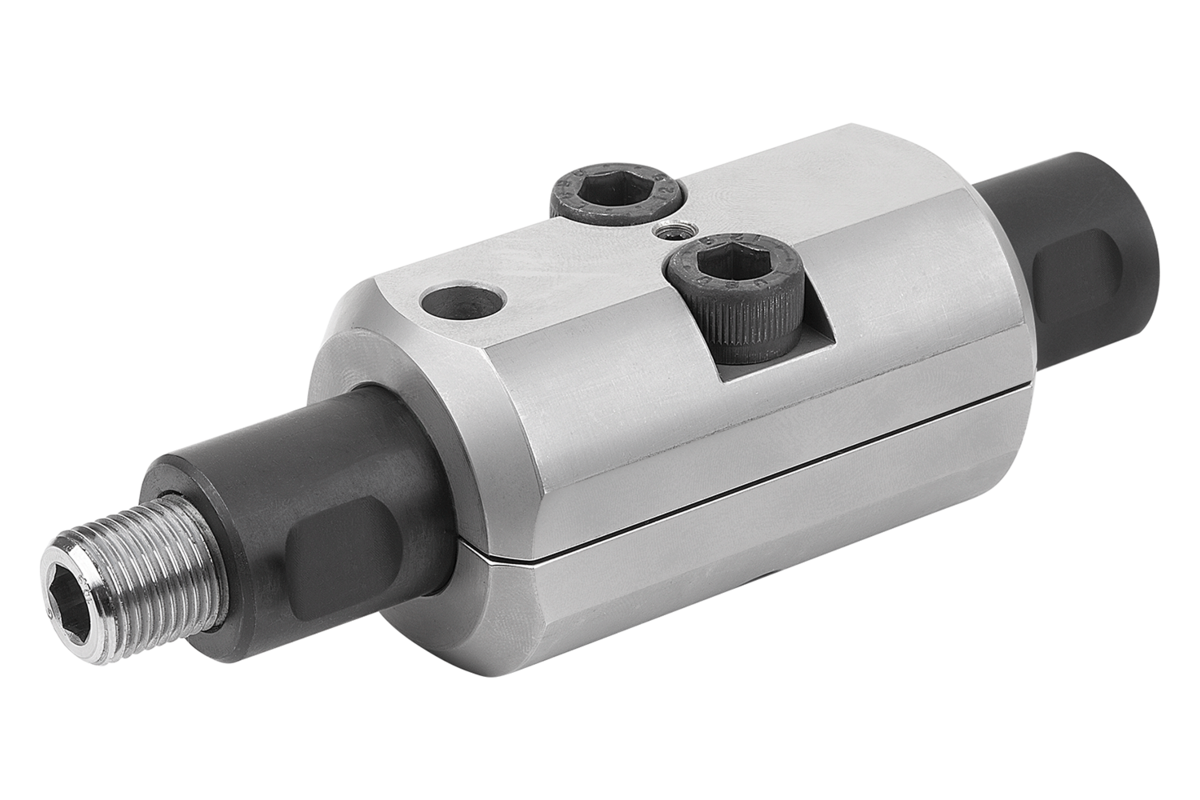

The fine adjustment enables the distance between the workpiece and support table to be precisely set. If required, the fine adjustment can be used to set the workpiece stabiliser under tensile or compressive load.
Material
Steel.
Version
Adapter piece black oxidised.
Half shells nitrided.
Half shells nitrided.
Note
Only the fine adjuster 02402-25120150 is required for workpiece stabiliser system size 25.

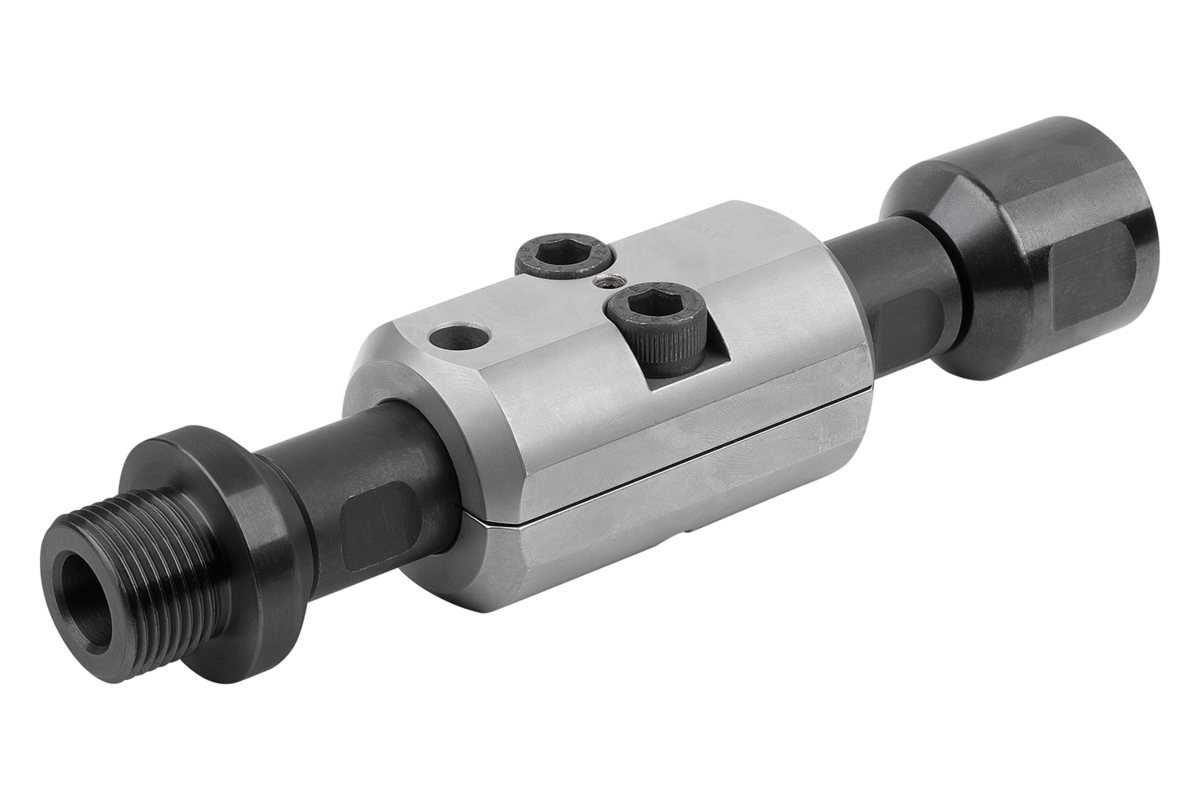

When using fine adjustment on the workpiece stabiliser system size 50, the fine adjuster 02402-25120150 and the adapter 02402-50 (consisting of 2 adapter pieces and a grub screw) are required at the respective ends.
When using fine adjustment on the workpiece stabiliser system size 50, the fine adjuster 02402-25120150 and the adapter 02402-50 (consisting of 2 adapter pieces and a grub screw) are required at the respective ends.
Drawing reference
1) DIN EN ISO 4762 M10 cap screw
